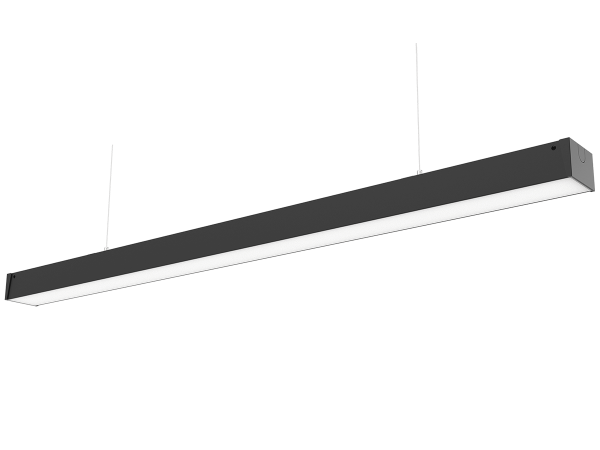

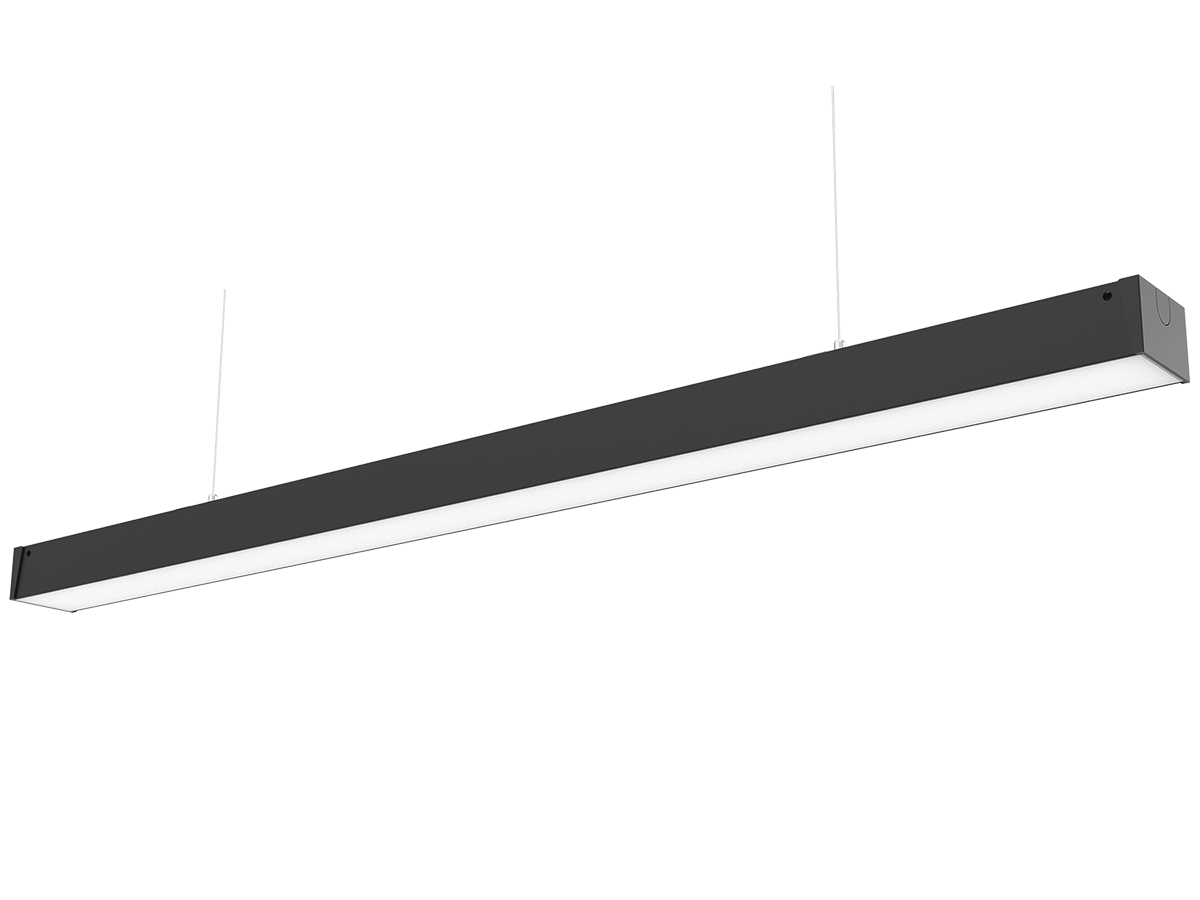

FUSION fixture series is available in power ranges from 20 to 60W, with a color temperature of 4000K. The efficiency of the fixtures is 130 lm/W.

The length of the fixture varies depending on its power. FUSION fixtures offer different light distribution angles, which can be adjusted using lenses, allowing practical adaptation to any lighting arrangement. Optionally, a UGR shield can be used, which eliminates the “glare” effect.

One of the greater advantages of the FUSION series is the ability to connect them together practically without tools using built-in connectors, which are standard equipment. This allows for a uniform, continuous line of light. The use of an optional corner connector enables the creation of various lighting layouts in any shapes, creating original, continuous light lines. The adjustment of light angles is done using lenses, which allow for the adjustment of the light distribution angle depending on the user’s expected effect.

By default, the fixture is equipped with a frosted PC Cover with a light distribution angle of 120 degrees. This is the most universal solution for the Fusion fixture series, as it works well in most lighting arrangements.

Use of different lenses:

• P18 lens – directs light downwards and in a specific direction, allowing, for example, the illumination of a communication route with one additional element, such as a shelf, rack, etc. (Application: warehouses, production halls, stores, and shopping malls).
• LR40 lens – significantly facilitates the illumination of shelves in the communication route on both sides of the fixture. Elements located on the sides of the fixture are more brightly lit, while the surface under the fixture is gently illuminated (Application: stores and shopping malls, communication routes, warehouses, and production halls).
• 30×90 lens – spot illumination, we can illuminate, for example, a communication route, a workplace, etc. With its help, we can highlight a specific surface. (Application: Offices and commercial spaces, stores and shopping malls, conference and lecture rooms).
• 90×110 lens – the angle of light distribution is similar to the PC Cover version of 120 degrees, except that it is slightly narrower, thus focusing light mainly below the fixture. (Application: Residential spaces, stores and shopping malls, offices, and commercial spaces).

Application of the fixture:

• Offices and commercial spaces: shopping centers, exhibition halls, hotels, restaurants, workplaces. Ceiling mounting or suspension on hangers will ensure even lighting of large spaces.
• Warehouses and production halls: ensuring adequate lighting in work areas. Additionally, energy consumption can be optimized using Daylight Harvesting with Merrytek sensors.
• Stores and shopping malls: achieving aesthetic and even lighting of specific surfaces. Highlighting displayed products or decorative architectural elements.
• Conference and lecture rooms: providing lighting for meeting participants, speakers, or displays of appropriate presentation areas.
• Residential spaces: basic application in places such as kitchens, living rooms, hallways, staircases. It can be used to highlight cabinets, shelves, and decorative interior elements.
