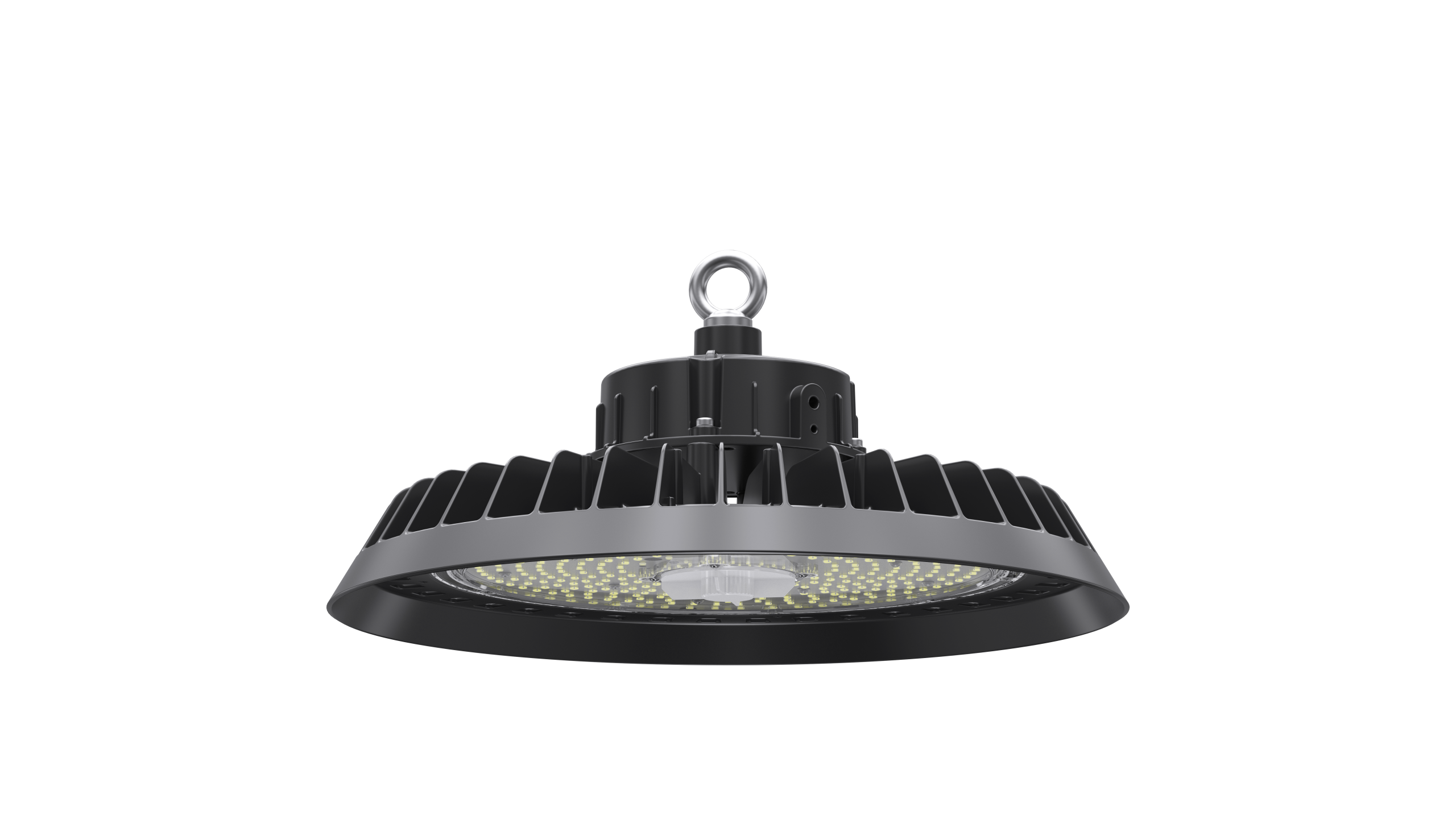

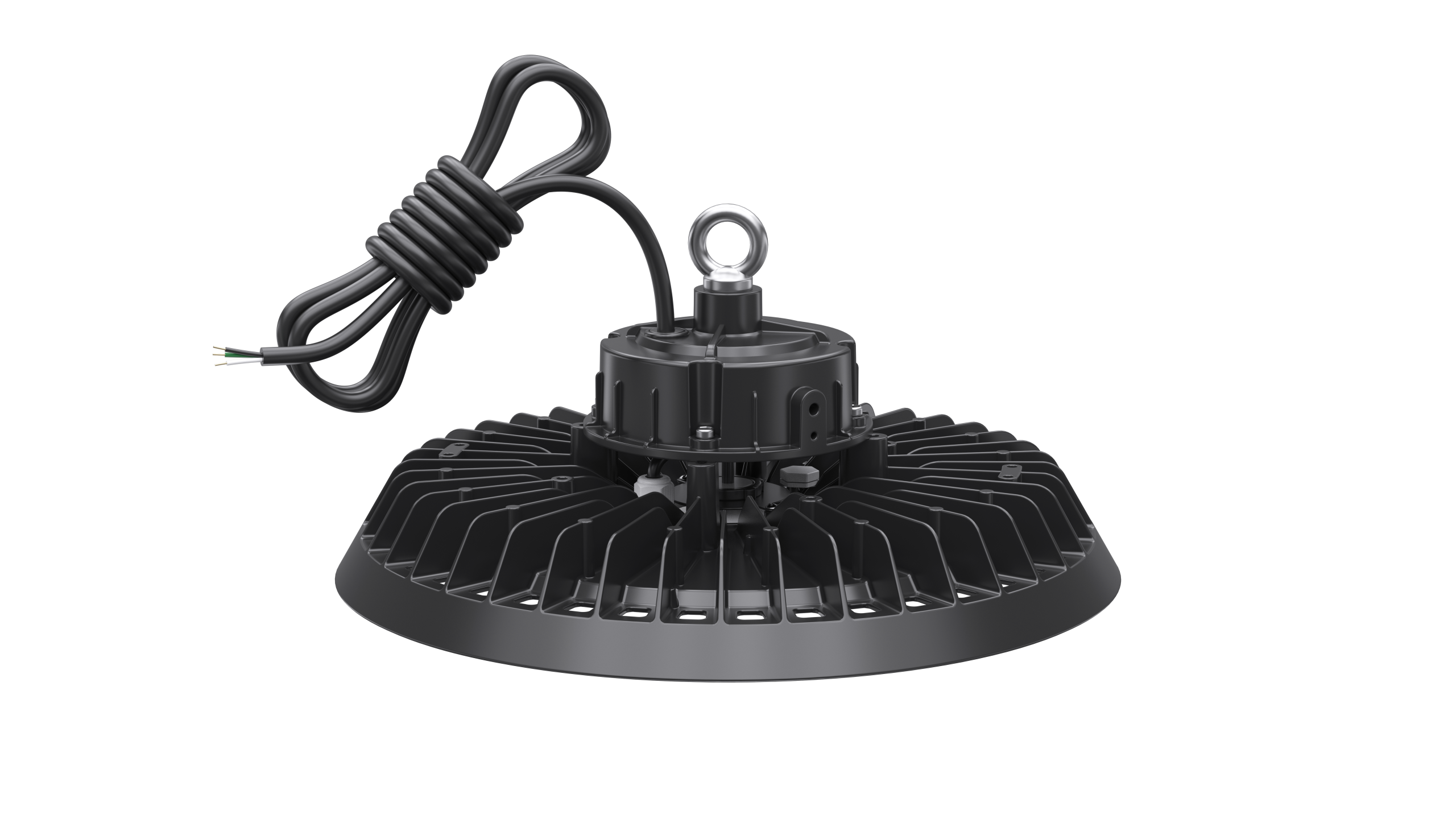

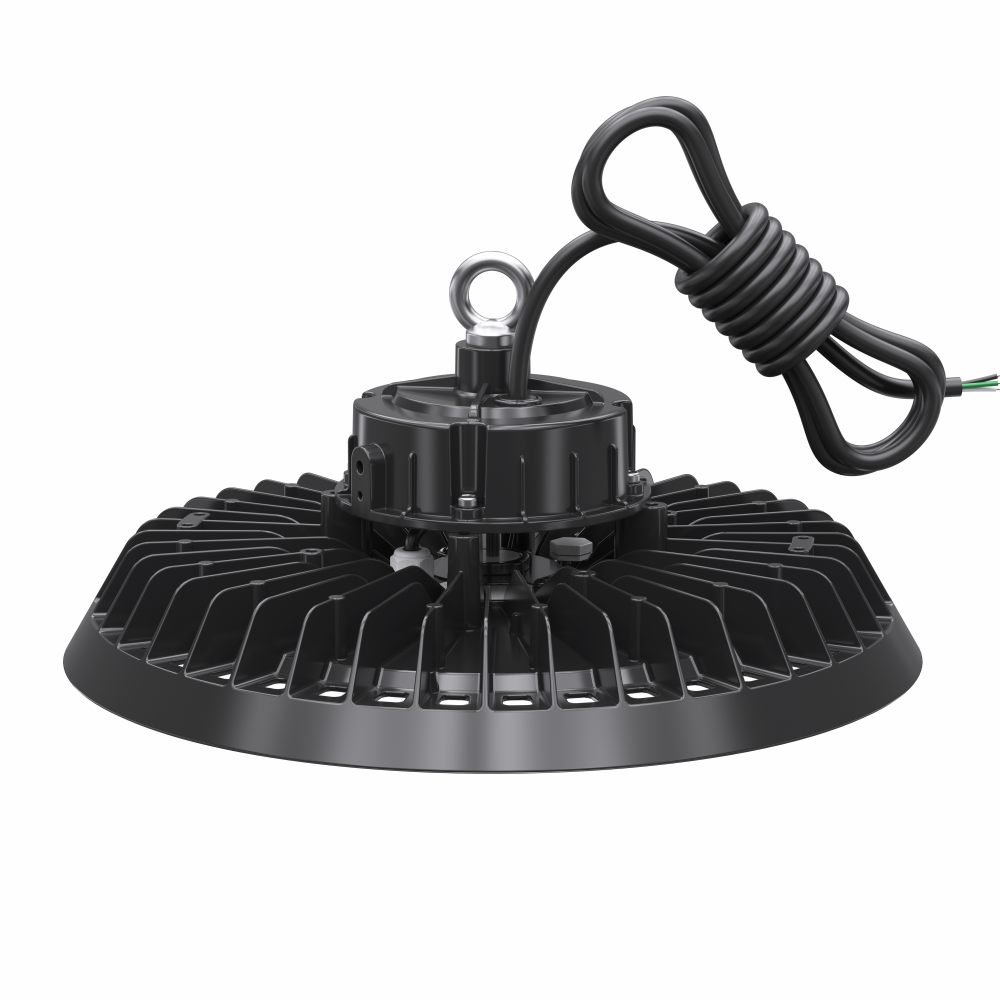

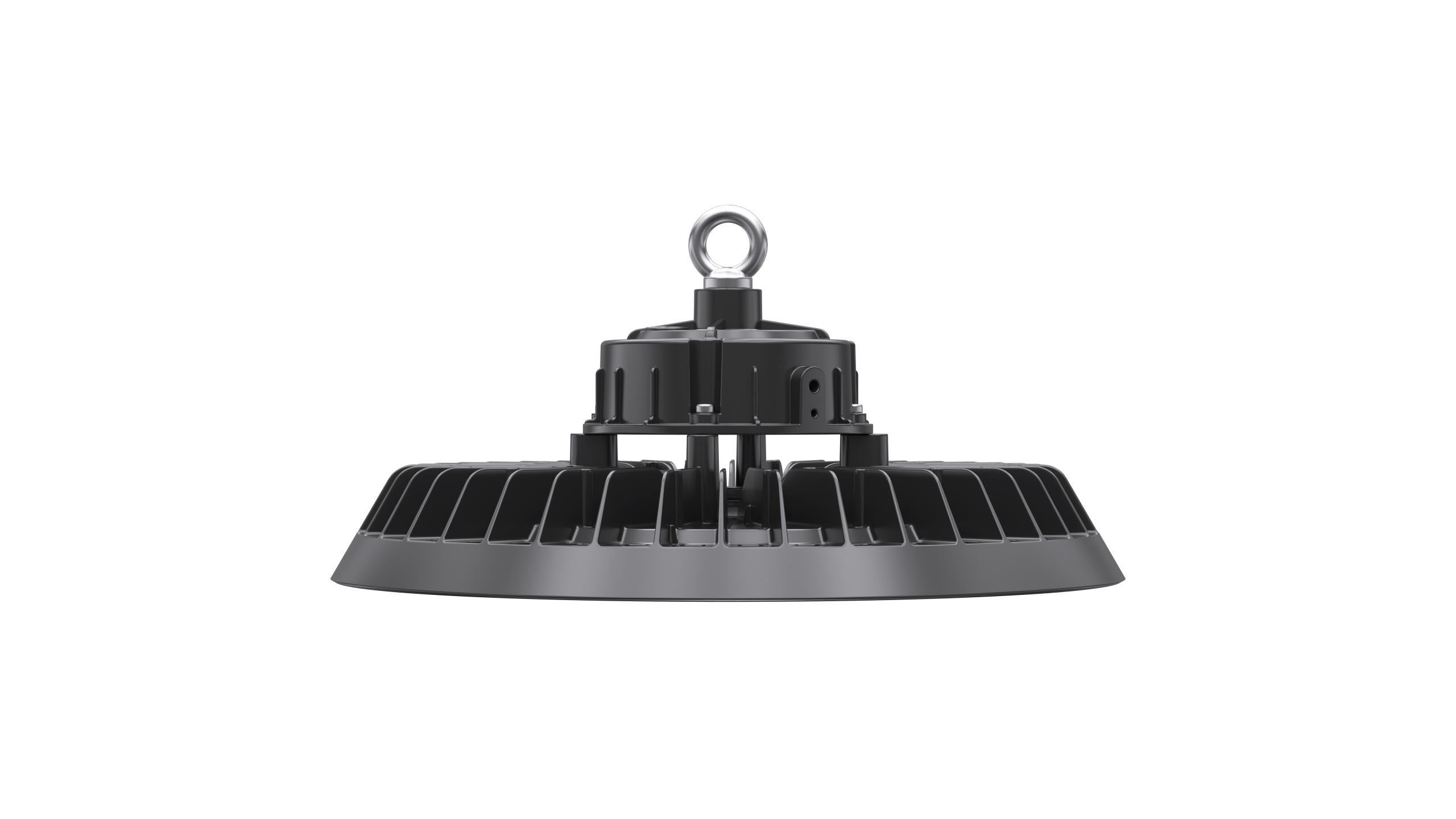

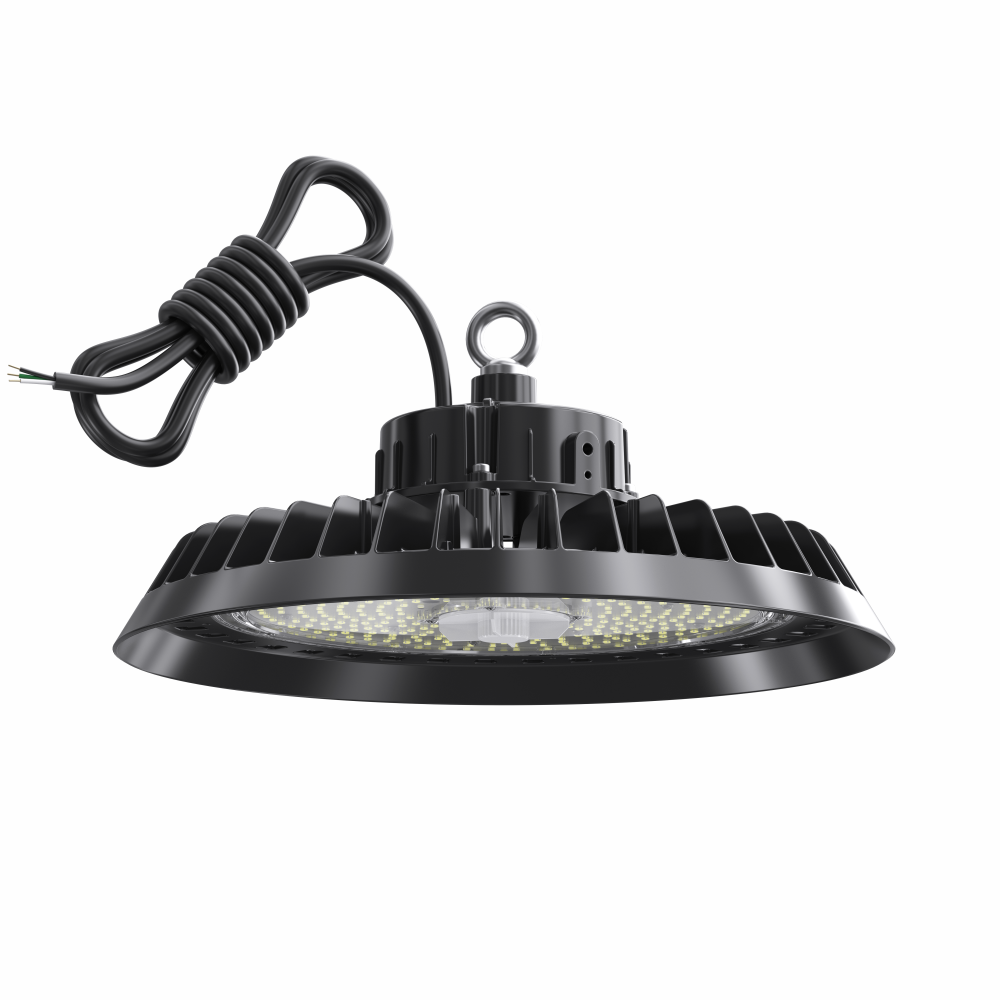

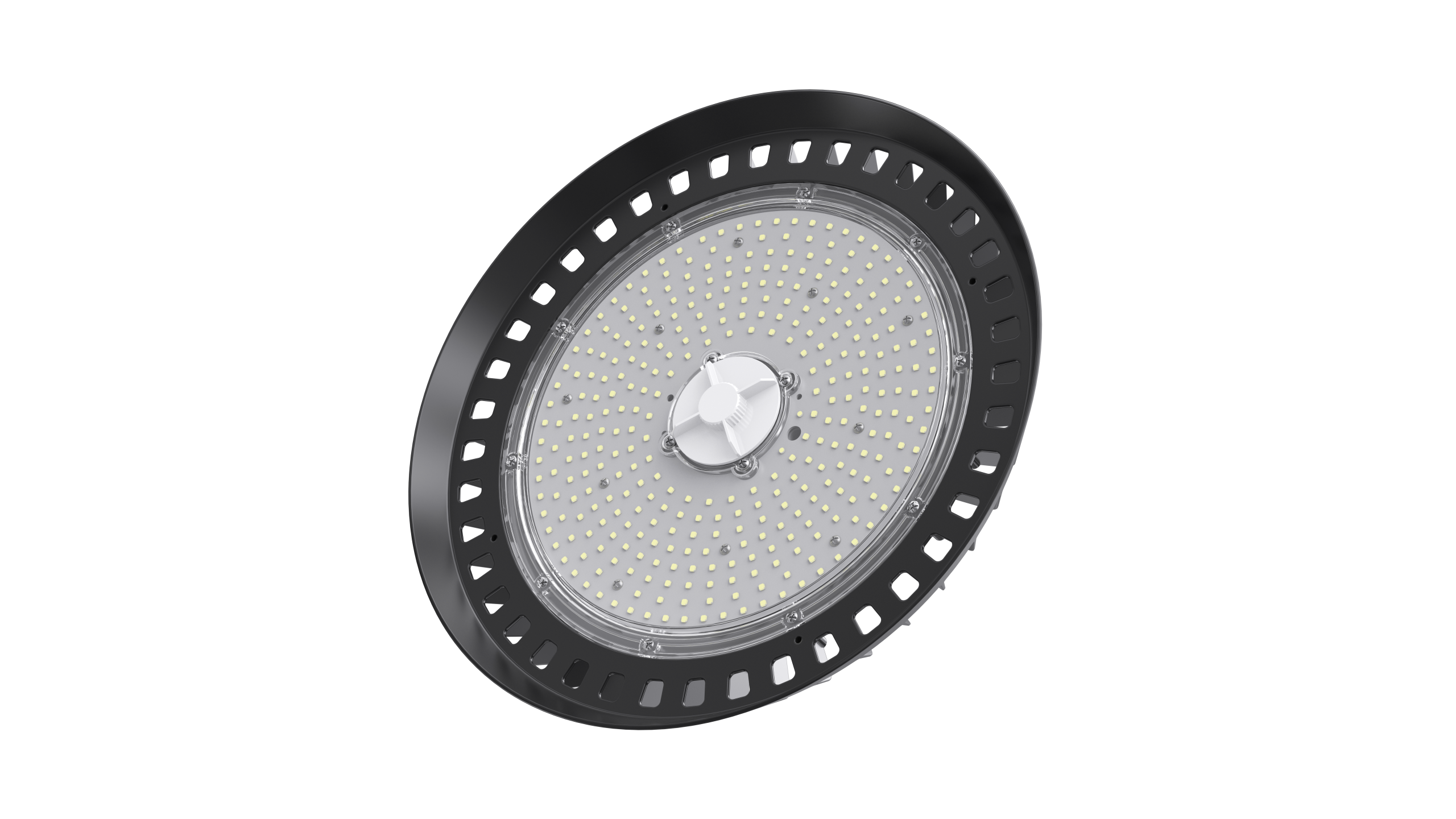

Orbit Series LED Low / High Bay Light

The Orbit Series LED Low / High Bay Light is a versatile, high-efficiency lighting solution designed for a wide range of commercial, industrial and agricultural applications. With selectable power settings, an efficacy of over 150lm/W and a 5000K daylight white colour temperature, the Orbit Series offers flexible, reliable performance to suit different lighting requirements.

Available in two models, the Orbit range features three selectable power settings, allowing the light output to be adjusted to suit your application. Both models are fitted with a reliable Sosen LED driver, offer 1–10V dimming as standard and feature a wide 120° beam angle for effective light distribution.

High Efficiency & Reliable Performance

Delivering over 150 lumens per watt, the Orbit Series provides powerful illumination with excellent energy efficiency. The 5000K daylight white colour temperature and CRI of over 80 provide clear, natural-looking light, making these luminaires suitable for a variety of working environments.

The integrated Sosen LED driver and standard 1–10V dimming provide dependable operation and greater control over lighting levels.

Available Models

ORHB1505K – 150W Model

• Selectable power: 100W / 120W / 150W
• Maximum light output: 22,500lm
• Dimensions: 299 × 299 × 139mm

ORHB2005K – 200W Model

• Selectable power: 120W / 150W / 200W
• Maximum light output: 30,000lm
• Dimensions: 347 × 347 × 142mm

Durable Design

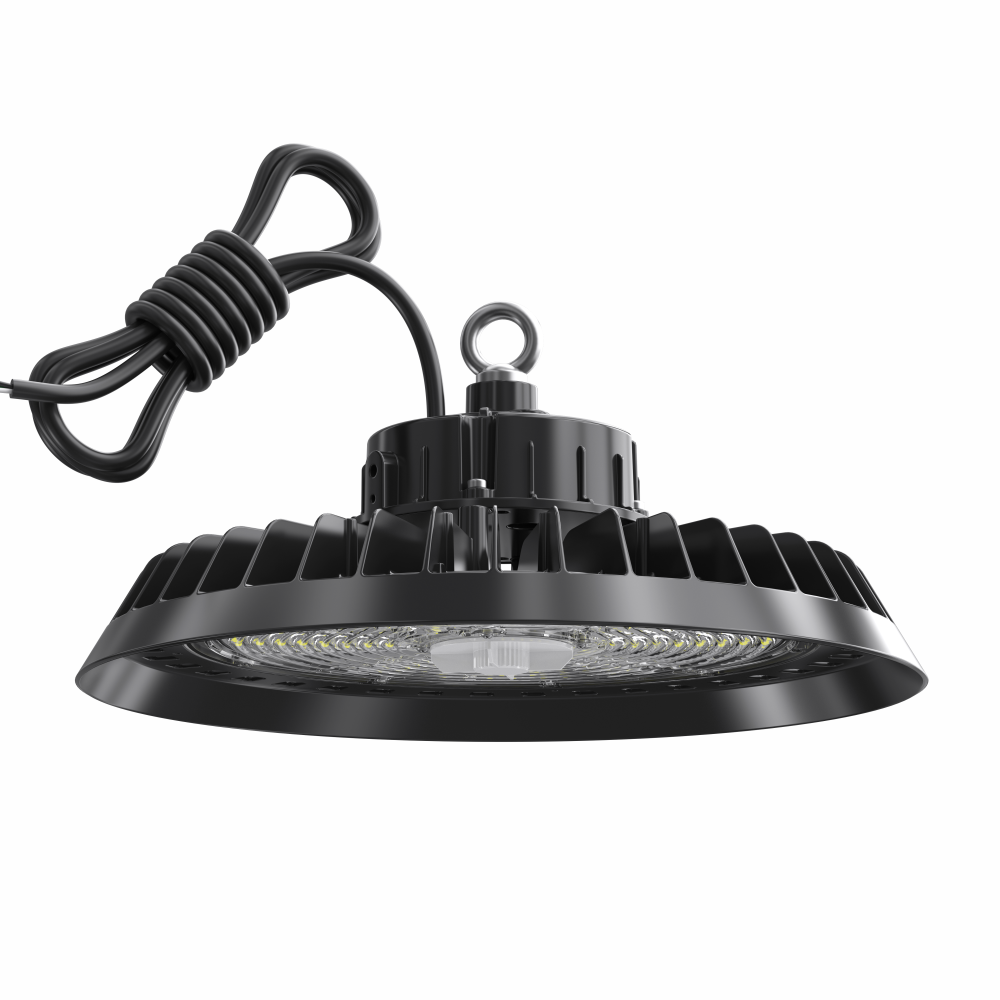

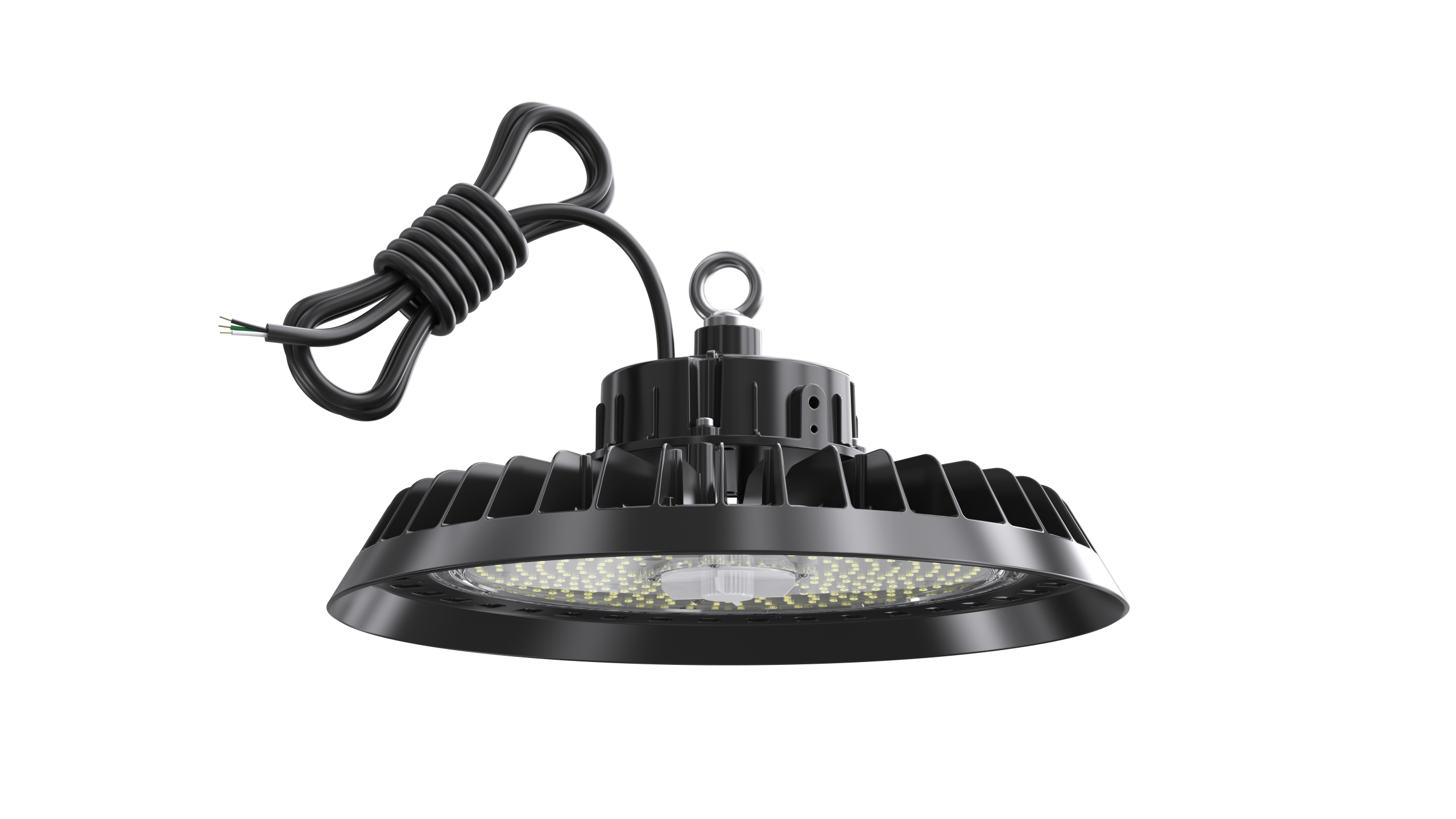

Finished in black, the Orbit Series is designed for demanding environments, featuring an IP66 rating for protection against dust and water ingress and an IK08 impact rating. Each unit is supplied with a 0.3m pre-wired cable for convenient connection.

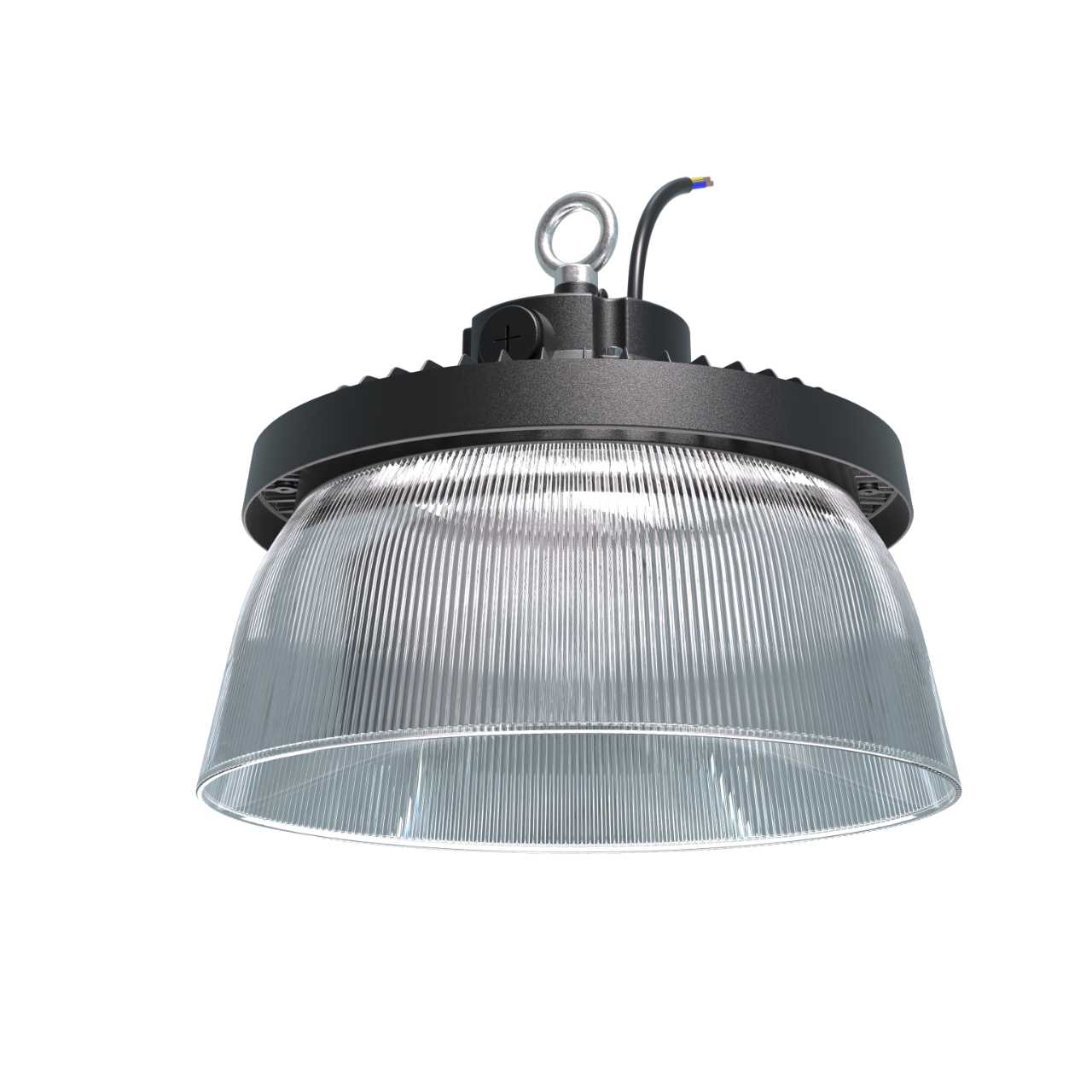

Optional lampshades are available for the 100W and 200W models, offering additional flexibility for different applications.

Key Features

• Power switchable for flexible light output
• High efficiency of over 150lm/W
• 5000K daylight white colour temperature
• CRI >80
• Wide 120° beam angle
• Reliable Sosen LED driver
• 1–10V dimming as standard
• 0.3m pre-wired cable
• Black finish
• IP66 rated
• IK08 impact resistance
• 5-year warranty

Optional accessories: Lampshades available for the 100W and 200W models.
